Products

WATERAX offers a complete line of high performance portable centrifugal pumps and hand pumps.

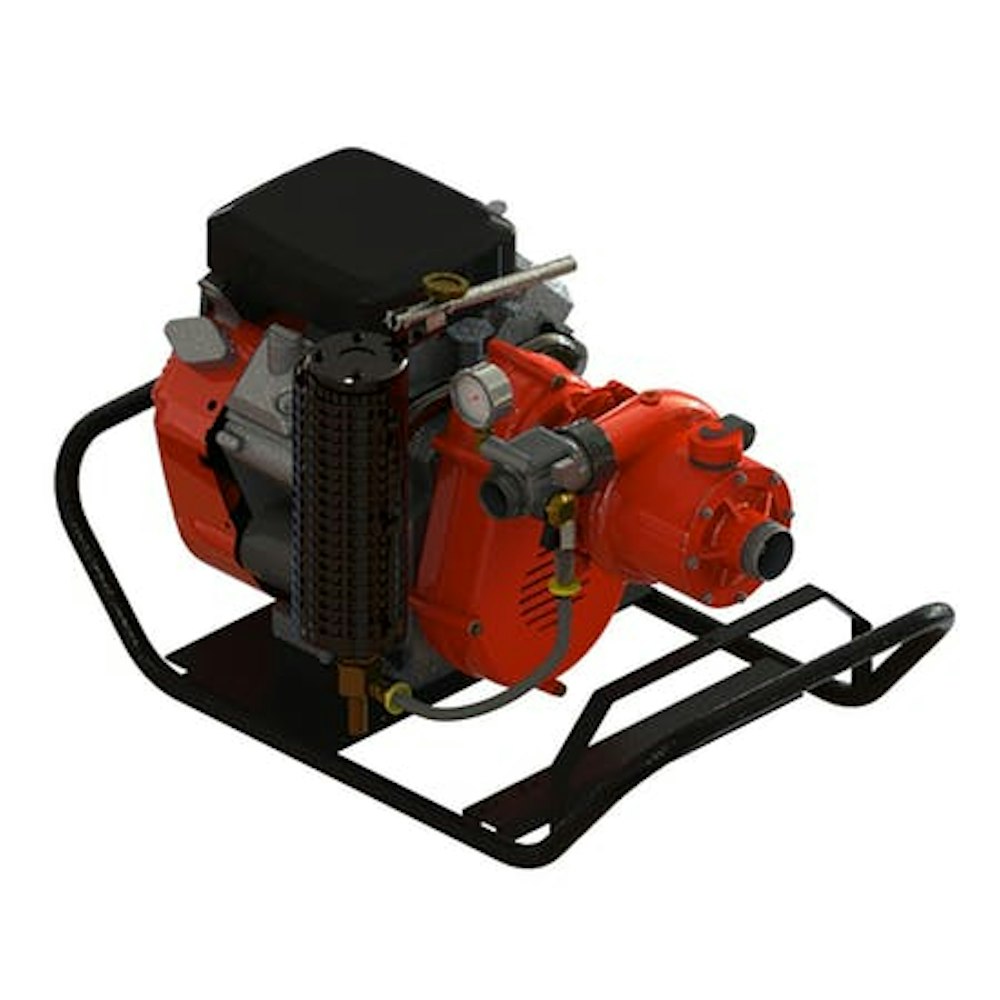

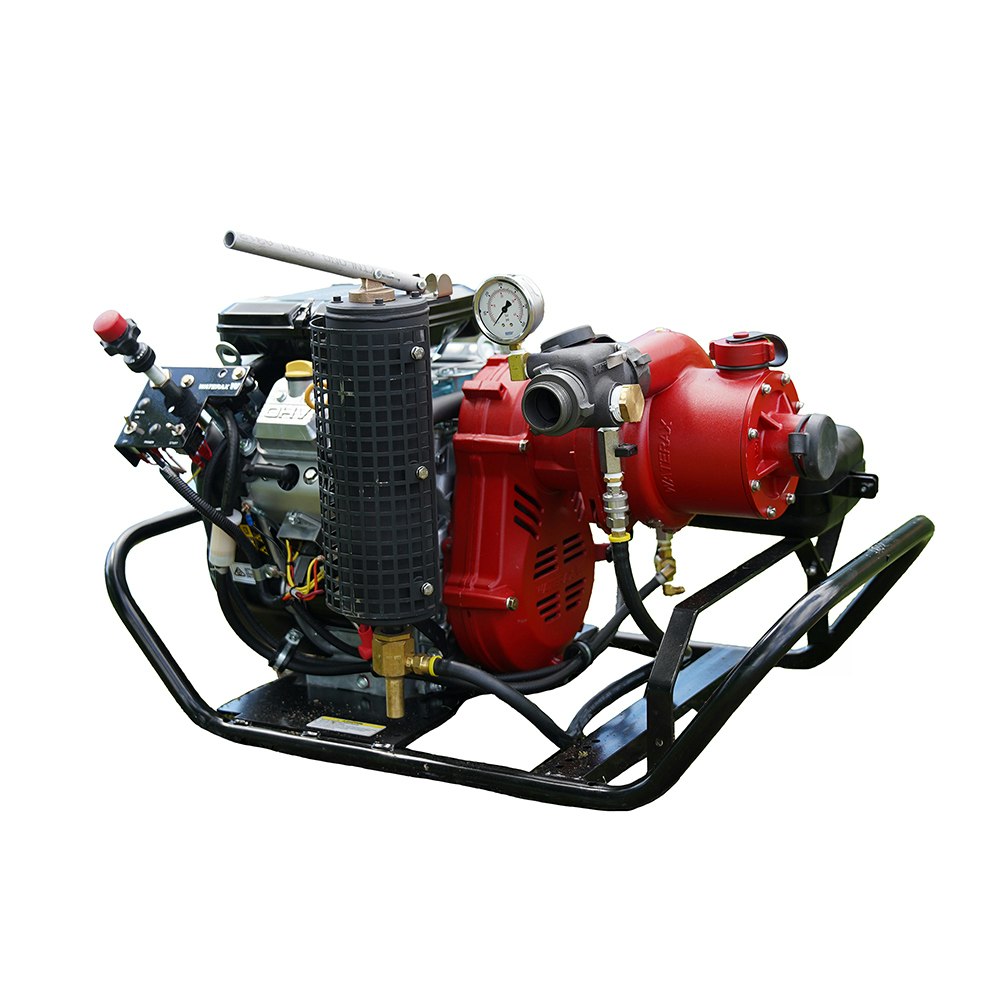

BB-4® High-Pressure Fire Pump

100134

BB-4® High-Pressure Fire Pump

100134

The BB-4®-23PX is powered by a 23 HP Briggs & Stratton engine configured with a portable frame and exhaust primer.

Maximum pressure
440 PSI (30.3 BAR)
Maximum flow
106 US gals/min (401 L/min)
Maximum head
1016' (310 m)
105 GPM (397 lpm) @ 150 PSI (10.3 BAR)
95 GPM (360 lpm) @ 250 PSI (17.2 BAR)
65 GPM (246 lpm) @ 350 PSI (24.1 BAR)
Model and type
Briggs & Stratton Vanguard
Maximum Power
23 hp (17.2 kW) @ 3600 RPM
Maximum Torque
32.75 lb-ft (44.4 Nm) @ 2600 RPM
Starting System
Recoil start with 12 VDC electric start option
Type
Detachable 4-Stage Centrifugal Pump
Intake
2" Male NPSH
Discharge
1-1/2" Male NPSH
170 lbs (77 kg)
Carry Frame
Vertical drive unit connecting to th 4-stage pump end
Primer
Exhaust Primer (Standard)
Muffler
Exhaust Primer Muffler (Standard)
Discharge Gauge
0-600 PSI, 2-1/2ʺ dial (Standard)
