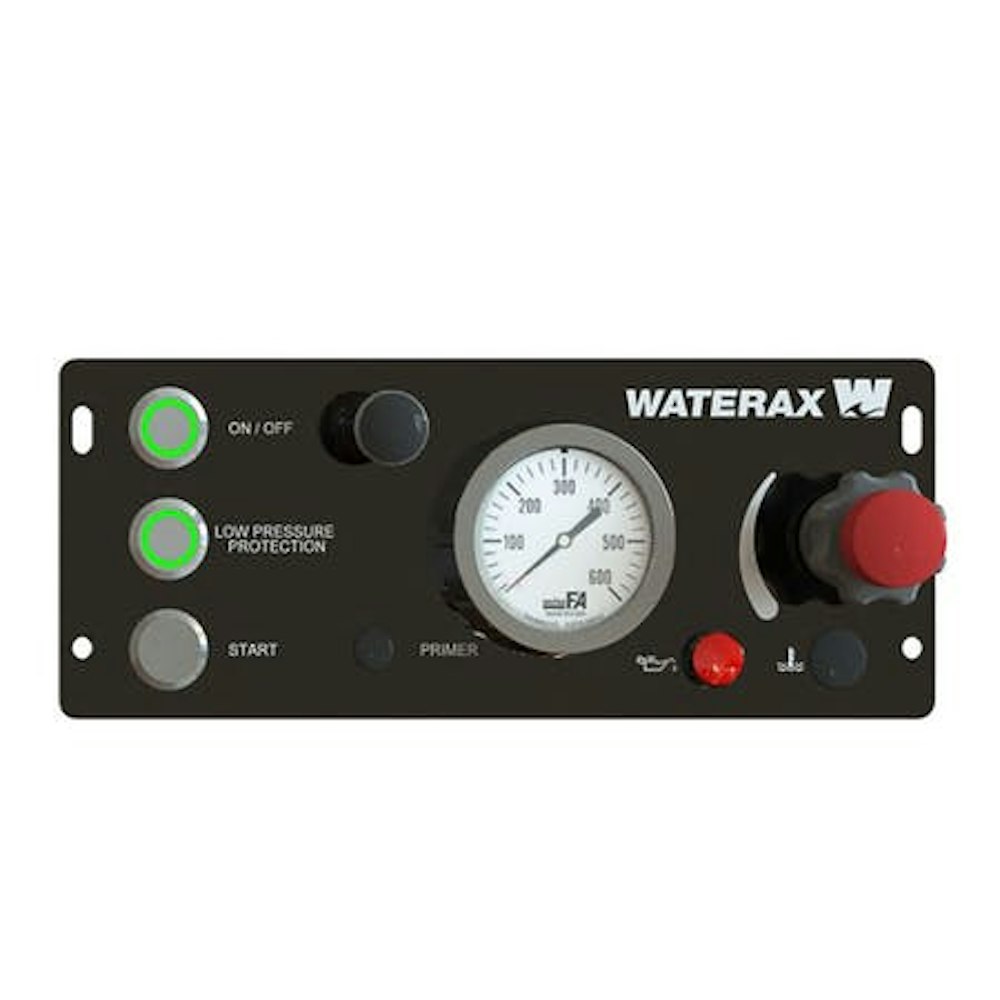

PMSCP Panel Mount Standard Control Panel w/Low Pressure Protection

250273

PMSCP Panel Mount Standard Control Panel w/Low Pressure Protection

250273

Designed for apparatus builders who want to integrate their control panel into their fire apparatus panel enclosure, the Panel Mount Standard Control Panel is the ideal solution. The PMSCP-LPP includes a low-pressure protection system that shuts down the pump to protect the pump when prime is lost. It also comes with provisions for a primer, a glow plug timer and a high-water-temperature warning light are available on the PMSCP-DIESEL.

Enclosure: Black anodized aluminumThrottle control: Vernier throttle with red emergency throttle idle push buttonChoke control: Push/pull engine choke cableMaster: Backlit LED stainless steel push buttonEngine start: Stainless steel push buttonPressure gauge: 0-600 PSI” 2.5” dialLow-oil alert: Daylight visible LED, redFastWire CTRL cable: Quick-connect 8-pin female industrial sealed connector for gasoline unitsLPP protection: Backlit LED stainless steel push button
