WATERAX offers a complete line of high performance portable centrifugal pumps and hand pumps.

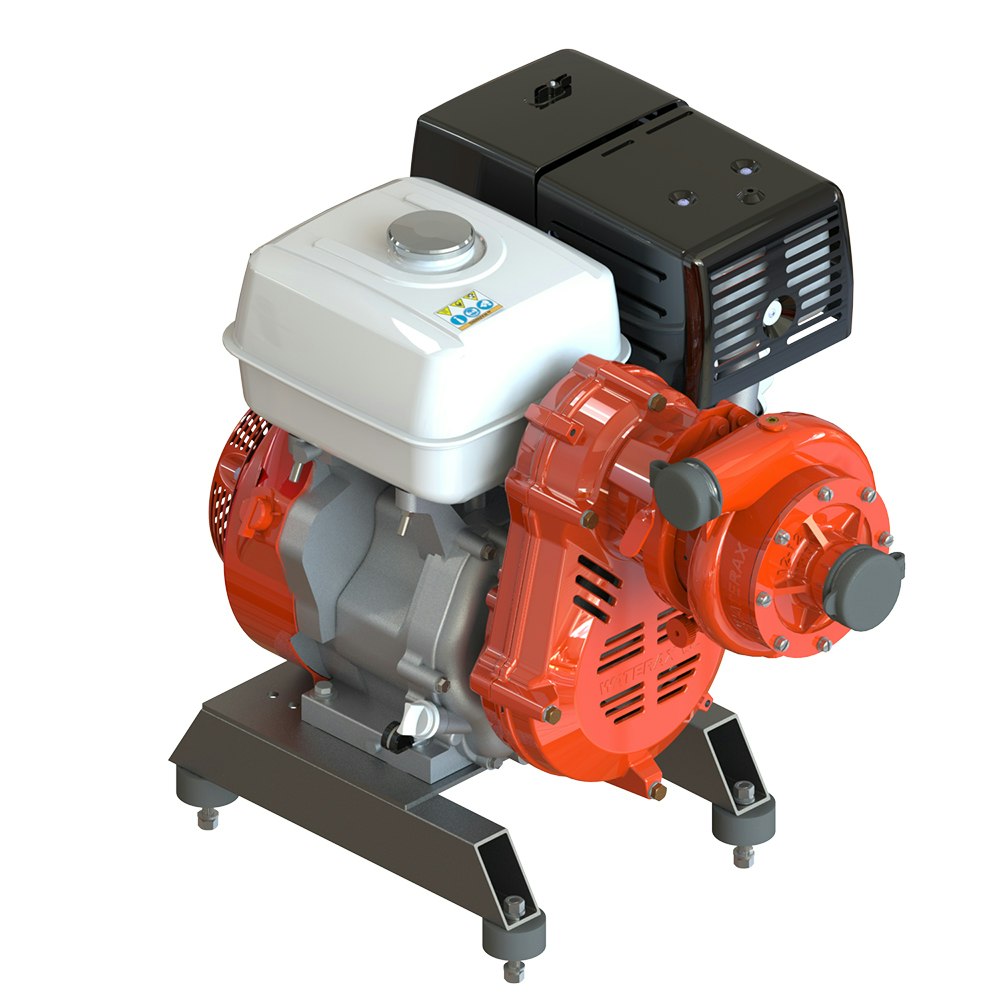

STRIKER-II® High-Pressure 2-Stage Fire Pump

100045

STRIKER-II® High-Pressure 2-Stage Fire Pump

100045

The STRIKER-II®-13V configuration is powered by a Honda 13 HP engine and vertical-drive unit in a vehicle mount configuration with a base mount and 8-pin FastWire connections.

Maximum pressure
230 PSI (15.9 BAR)
Maximum flow
105 US gals/min (397 L/min)
Maximum head
531’ (162 m)
97 GPM (367 lpm) @ 100 PSI (6.9 BAR)
80 GPM (303 lpm) @ 150 PSI (10.3 BAR)
58 GPM (202 lpm) @ 200 PSI (13.8 BAR)
Model and type
Honda, GX390 Series 4-cycle, horizontal shaft, single cylinder, OHV
Maximum Power
11.7 hp (8.7 kW) @ 3600 RPM
Maximum Torque
19.5 lb-ft (26.4 Nm) @ 2500 RPM
Starting System
12 VDC electric with manual recoil backup start
Type
Detachable 2-Stage Centrifugal Pump
Intake
2" Male NPSH
Discharge
1-1/2" Male NPSH
127 lbs (58 kg)
Base Mount with Industrial Isolators
Timing Belt and Pulley; Speed Increaser 1.88:1
Fuel Tank
Integral 1.6 US gallons (6.1 L) (Standard)
FastWire
3' CTRL Cable with 8 pin connector (Standard)
Controls
Remote Mount Control Panels - XCP Series (Optional)
Maximum pressure
230 PSI (15.9 BAR)
Maximum flow
105 US gals/min (397 L/min)
Maximum head
531’ (162 m)
97 GPM (367 lpm) @ 100 PSI (6.9 BAR)
80 GPM (303 lpm) @ 150 PSI (10.3 BAR)
58 GPM (202 lpm) @ 200 PSI (13.8 BAR)
Model and type
Honda, GX390 Series 4-cycle, horizontal shaft, single cylinder, OHV
Maximum Power
11.7 hp (8.7 kW) @ 3600 RPM
Maximum Torque
19.5 lb-ft (26.4 Nm) @ 2500 RPM
Starting System
12 VDC electric with manual recoil backup start
Type
Detachable 2-Stage Centrifugal Pump
Intake
2" Male NPSH
Discharge
1-1/2" Male NPSH
127 lbs (58 kg)
Base Mount with Industrial Isolators
Timing Belt and Pulley; Speed Increaser 1.88:1
Fuel Tank
Integral 1.6 US gallons (6.1 L) (Standard)
FastWire
3' CTRL Cable with 8 pin connector (Standard)
Controls
Remote Mount Control Panels - XCP Series (Optional)
