WATERAX offers a complete line of high performance portable centrifugal pumps and hand pumps.

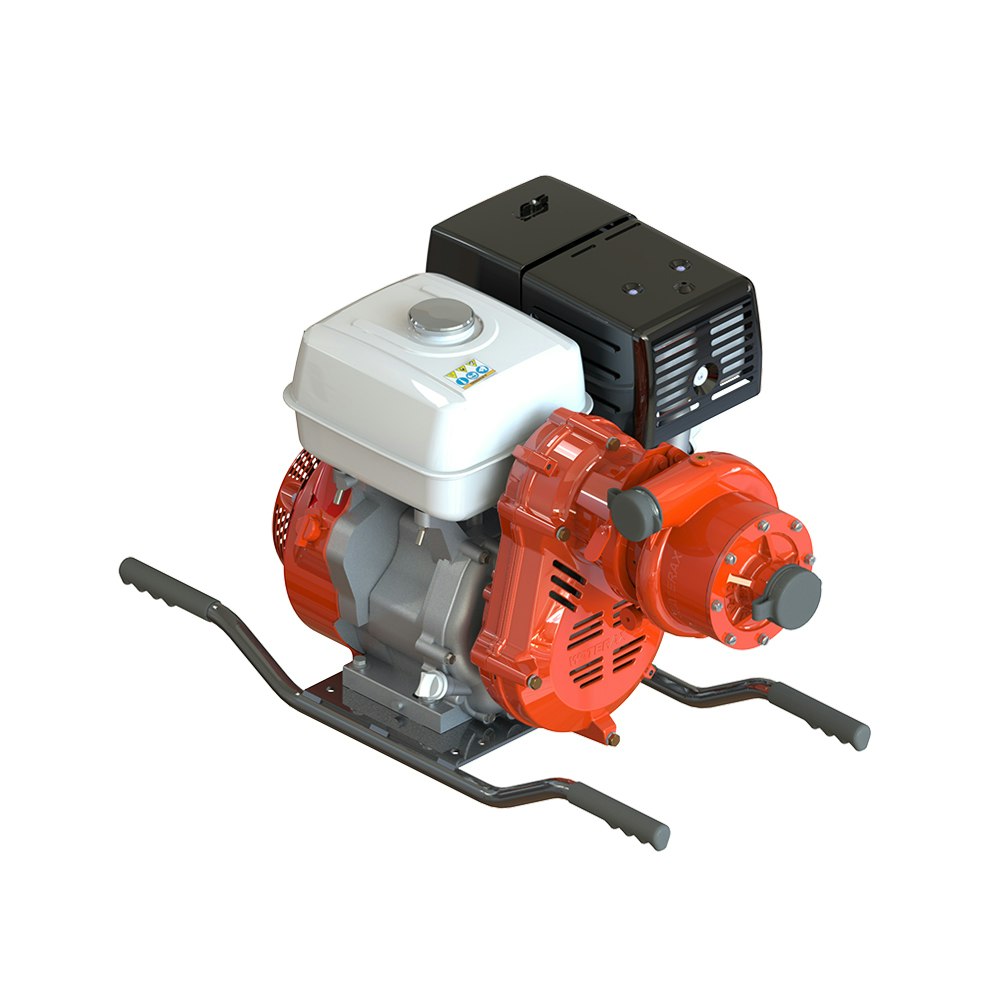

STRIKER-3 High-Pressure 3-Stage Fire Pump

100048

STRIKER-3 High-Pressure 3-Stage Fire Pump

100048

The STRIKER-3-13S is powered by a 13 HP Honda engine and vertical-drive unit in a portable configuration with a carry frame.

Maximum pressure
345 PSI (23.8 BAR)
Maximum flow
102 US gals/min (386 L/min)
Maximum head
797’ (243 m)
87 GPM (329 lpm) @ 100 PSI (6.9 BAR)
75 GPM (284 lpm) @ 150 PSI (10.3 BAR)
40 GPM (151 lpm) @ 250 PSI (17.2 BAR)
Model and type
Honda, GX390 Series, 4-cycle, horizontal shaft, single cylinder, OHV
Maximum Power
11.7 hp (8.7 kW) @ 3600 RPM
Maximum Torque
19.5 lb-ft (26.4 Nm) @ 2500 RPM
Starting System
12 VDC electric with manual recoil backup start
Type
Detachable 3-Stage Centrifugal Pump
Intake
2" Male NPSH
Discharge
1-1/2" Male NPSH
125 lbs (57 kg)
Carry frame
Timing Belt and Pulley; Speed Increaser 1.88:1
Fuel Tank
Integral 1.6 US gallons (6.1 L) (Standard)
