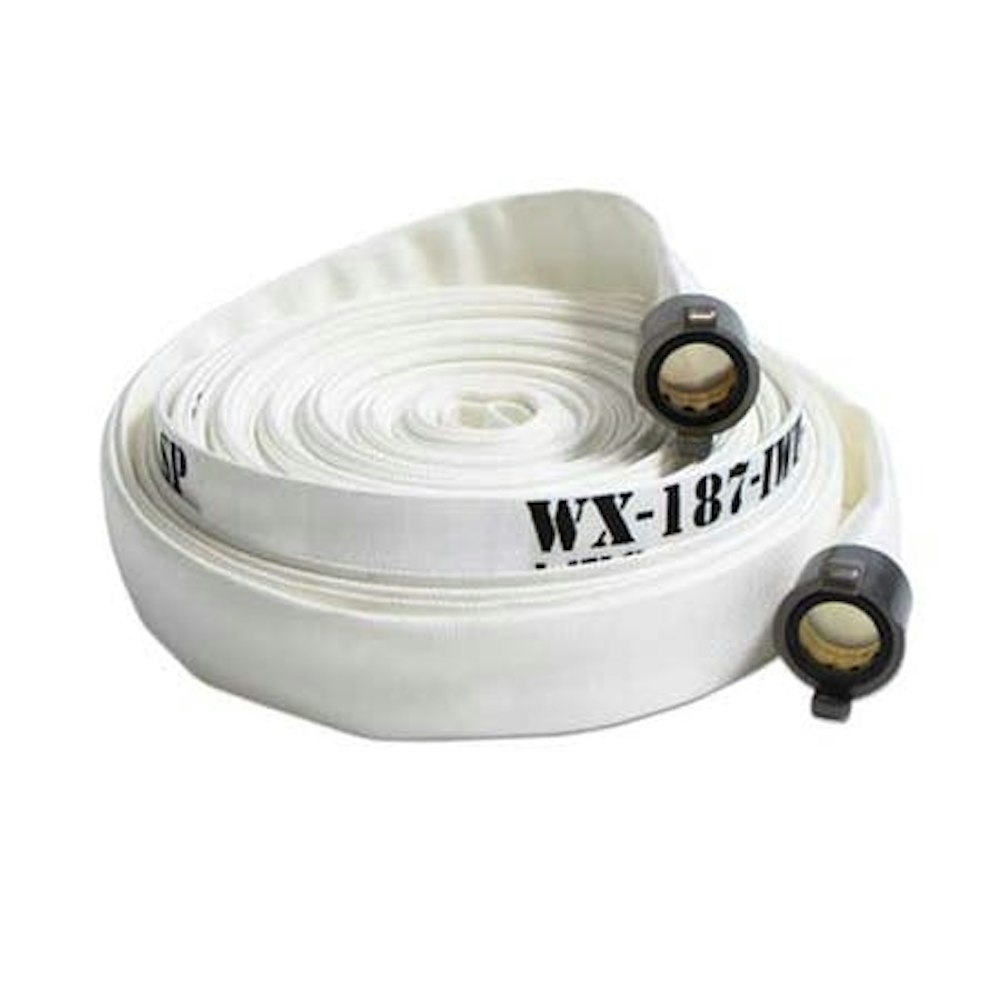

WX-187-IWP Synthetic Type I Weeping Forestry Hose

WX-187-IWP Synthetic Type I Weeping Forestry Hose

The WX-187-IWP is a single-jacket filament polyester lay flat hose that weeps for self-protection. This tough yet lightweight hose is designed for wildland firefighting operations where weight is critical. Each length is coupled with quality forged couplings for increased safety and to withstand the rigours of wildland conditions.

Color : White Application : Forestry attack hose, brush trucks, structure protection Jacket : Single jacket 100% virgin high tenacity polyester Lining : Polyurethane Temperature range : -55°C ~ 80°C Hose standard : Meets or exceeds all performance requirements of NFPA 1961 and is 5100-187c Type I compliant Coupling type : Forged aluminum Available size : 1” (25 mm), 1.5” (38 mm) Standard length : 30 m (100’)
Item Number Description Bowl Size Hose Size Coil Diameter 100' (30 m) Burst Pressure Proof Pressure Service Pressure Weight 100' Uncoupled
400510 1 X 100 WX-187-IWP TYPE I WEEPING INST ALUM 1 3/16'' (30 mm) 1'' (25 mm) 15'' (37 cm) 900 PSIG (6300 kPa) 600 PSIG (4140 kPa) 300 PSIG (2100 kPa) 5.67 lbs (2.58 kg)
400498 1.5 X 100 WX-187-IWP TYPE I WEEPING INST ALUM 1 11/16'' (43 mm) 1.5'' (38 mm) 16'' (40 cm) 900 PSIG (6300 kPa) 600 PSIG (4140 kPa) 300 PSIG (2100 kPa) 11.9 lbs (5.4 Kg)
400501 1.5 X 50 WX-187-IWP TYPE I WEEPING INST ALUM 1 11/16'' (43 mm) 1.5'' (38 mm) 16'' (40 cm) 900 PSIG (6300 kPa) 600 PSIG (4140 kPa) 300 PSIG (2100 kPa) 11.9 lbs (5.4 kg)
