WATERAX offers a complete line of high performance portable centrifugal pumps.B2X™ Mid-Range Pump Diesel
100098
B2X™ Mid-Range Pump Diesel
100098

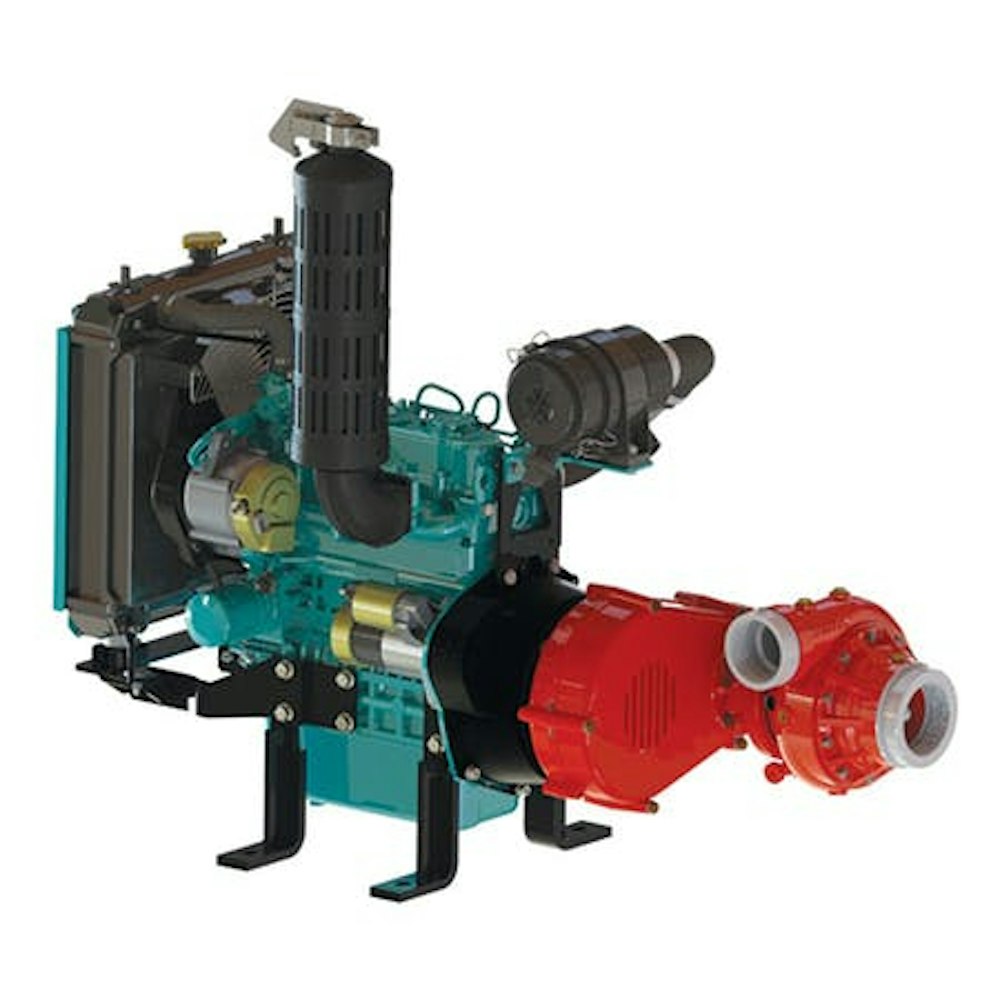

The B2X-D902H is powered by a Kubota diesel engine with a horizontal-drive unit and leg mounts ready for vehicle mounting.
Maximum pressure
180 PSI (12.4 BAR)
Maximum flow
310 GPM (1173 lpm)
Maximum head
415’ (127 m)
274 GPM (1037 lpm) @ 50 PSI (3.4 BAR)
220 GPM (833 lpm) @ 100 PSI (6.9 BAR)
112 GPM (424 lpm) @ 150 PSI (10.3 BAR)
Model and type
Kubota D902-E4B, 310 GPM (1173 lpm)
Maximum Power
24.8 hp (18.5 kW) @ 3600 RPM
Maximum Torque
40.6 lb-ft (55 Nm) @ 2600 RPM
Starting System
12 VDC, 1.0 kW Starter (with glow plug)
Type
Detachable 2-Stage Centrifugal Pump
Intake
3" Female NPT / 4" VIC Combination
Discharge
2-1/2" Female NPT / 3" VIC Combination
280 lbs (127 kg)
4 Leg Mounts
Timing Belt and Pulley; Speed Increaser 1.88:1
Primer
Electric Primer (Optional)
Muffler
Rain Cap Standard / Forestry Spark Arrestor (Optional)
FastWire
3' CTRL Cable with 14 pin connector (Standard)
Controls
Panel Mount Control Panel - PMSCP-DIESEL / LOFA (Optional)
