Productos
Waterax le ofrece una línea completa de bombas centrífugas portátiles y bombas manuales de alto rendimiento.B2X-18H
100054
B2X-18H
100054

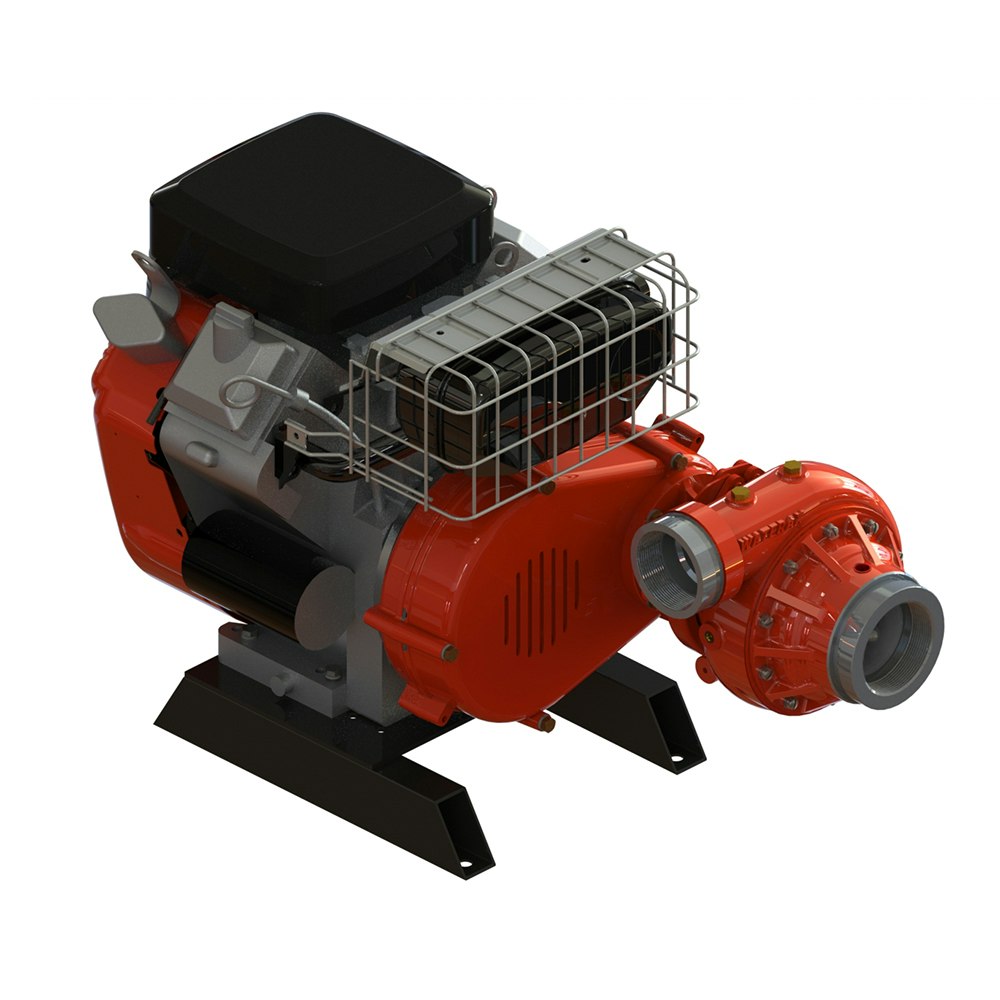

The B2X-18H is powered by an 18 HP Briggs & Stratton engine with a horizontally-mounted drive unit and configured with a vehicle base mount and 8-pin FastWire connections.
Presión máxima
190 PSI (13.1 BAR)
Flujo máximo
300 US gals/min (1136 L/min)
Altura máxima
439' (134 m)
255 GPM (965 lpm) @ 50 PSI (3.4 BAR)
155 GPM (587 lpm) @ 100 PSI (6.9 BAR)
65 GPM (246 lpm) @ 150 PSI (10.3 BAR)
Modelo y tipo
Briggs & Stratton Vanguard, 4-cycle, horizontal shaft, twin cylinder, OHV
Potencia máxima
18 hp (13.4 kW) @ 4000 RPM
Torque máximo
26.9 lb-ft (36.5 Nm) @ 2800 RPM
Sistema de arranque
Arrancador en retroceso con opción de arranque eléctrico de 12 VDC
Tipo
Detachable 2-Stage Centrifugal Pump
Entrada
3" Female NPT/4" VIC Combination
Descarga
2-1/2" Female NPT/3" VIC Combination
157 lbs (71 kg)
Base Mount with Industrial Isolators
Timing Belt and Pulley; Speed Increaser 1.88:1
Cebador
Remote Exhaust Primer w/Control Cable (Standard)
Silenciador
Exhaust Primer Muffler (Standard)
FastWire
3' CTRL Cable with 8 pin connector (Standard)
Panel de control
Remote Mount Control Panel - XCP Series (Optional)
