Products

WATERAX offers a complete line of high performance portable centrifugal pumps and hand pumps.

VERSAX® Multipurpose Pump

100078

VERSAX® Multipurpose Pump

100078

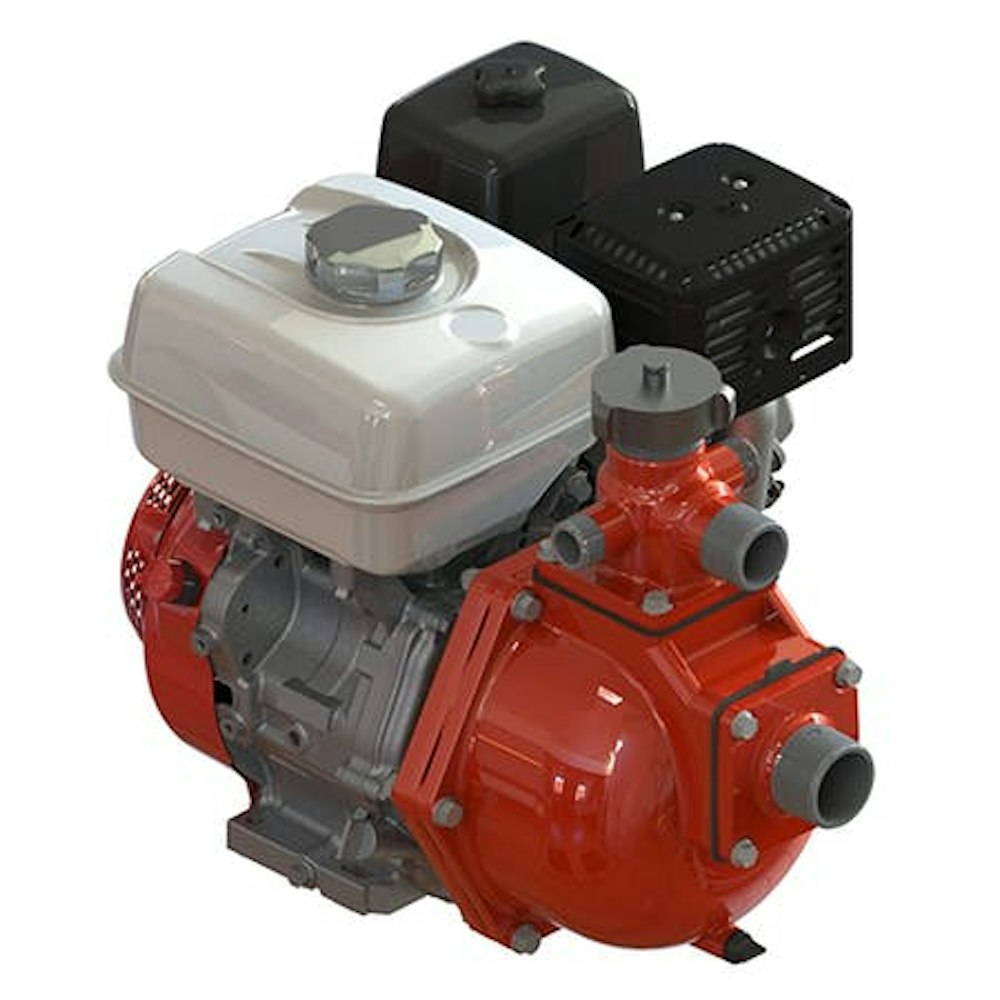

The VERSAX®-9EV is powered by a 9 HP Honda engine configured for vehicle mounting, electric start and battery.

Maximum pressure
150 PSI (10.3 BAR)
Maximum flow
105 US gals/min (397 L/min)
Maximum head
347' (106 m)
92 GPM (348 lpm) @ 50 PSI (3.4 BAR)
80 GPM (303 lpm) @ 75 PSI (5.2 BAR)
64 GPM (242 lpm) @ 100 PSI (6.9 BAR)
Model and type
Honda GX270 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
Maximum Power
8.5 hp (6.3 kW) @ 3600 RPM
Maximum Torque
14.1 lb-ft (19.1 Nm) @ 2500 RPM
Starting System
Manual; Recoil with Electric Start Option
Type
Self-Priming 2-Stage Centrifugal Pump
Intake
2" Male NPT
Discharge
1-1/2", 1", 1" Male NPT
83,7 lbs (38 kg)
FastWire
3’ CTRL Cable with 8 pin connector (Standard)
Controls
Remote Mount Control Panel - XCP Series (Optional)
Maximum pressure
150 PSI (10.3 BAR)
Maximum flow
105 US gals/min (397 L/min)
Maximum head
347' (106 m)
92 GPM (348 lpm) @ 50 PSI (3.4 BAR)
80 GPM (303 lpm) @ 75 PSI (5.2 BAR)
64 GPM (242 lpm) @ 100 PSI (6.9 BAR)
Model and type
Honda GX270 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
Maximum Power
8.5 hp (6.3 kW) @ 3600 RPM
Maximum Torque
14.1 lb-ft (19.1 Nm) @ 2500 RPM
Starting System
Manual; Recoil with Electric Start Option
Type
Self-Priming 2-Stage Centrifugal Pump
Intake
2" Male NPT
Discharge
1-1/2", 1", 1" Male NPT
83,7 lbs (38 kg)
FastWire
3’ CTRL Cable with 8 pin connector (Standard)
Controls
Remote Mount Control Panel - XCP Series (Optional)
