WATERAX offers a complete line of high performance portable centrifugal pumps and hand pumps.

B2X™ Mid-Range Pump

100070

B2X™ Mid-Range Pump

100070

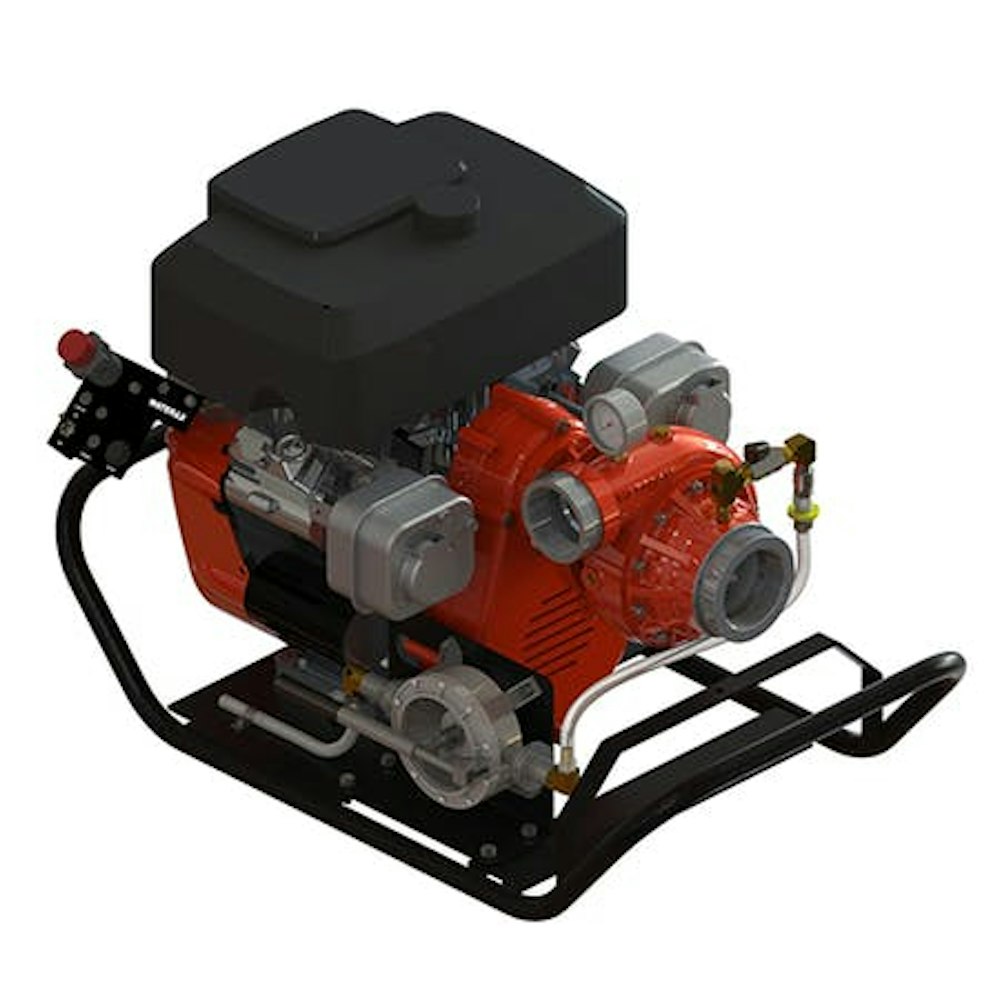

The B2X-18PTC is powered by an 18 HP Briggs & Stratton engine configured on a portable carry frame with a vertical-drive unit, a fuel tank and control panel.

Maximum pressure
190 PSI (13.1 BAR)
Maximum flow
300 US gals/min (1136 L/min)
Maximum head
439' (134 m)
255 GPM (965 lpm) @ 50 PSI (3.4 BAR)
155 GPM (587 lpm) @ 100 PSI (6.9 BAR)
65 GPM (246 lpm) @ 150 PSI (10.3 BAR)
Model and type
Briggs & Stratton Vanguard, 4-cycle, horizontal shaft, twin cylinder, OHV
Maximum Power
18 hp (13.4 kW) @ 4000 RPM
Maximum Torque
26.9 lb-ft (36.5 Nm) @ 2800 RPM
Starting System
Recoil start with 12 VDC electric start option
Type
Detachable 2-Stage Centrifugal Pump
Intake
3" Female NPT/4" VIC Combination
Discharge
2-1/2" Female NPT/3" VIC Combination
172 lbs (78 kg)
Carry Frame
Vertical
Primer
Guzzler Hand Primer (Standard)
Muffler
Dual Low Tone (Standard)
Fuel Tank
Integral / 1.75 US gals (6.6 L) (Standard)
FastWire
Engine Mount Control Panel (Standard)
Discharge Gauge
0-600 PSI, 2-1/2" dial (Standard)
Maximum pressure
190 PSI (13.1 BAR)
Maximum flow
300 US gals/min (1136 L/min)
Maximum head
439' (134 m)
255 GPM (965 lpm) @ 50 PSI (3.4 BAR)
155 GPM (587 lpm) @ 100 PSI (6.9 BAR)
65 GPM (246 lpm) @ 150 PSI (10.3 BAR)
Model and type
Briggs & Stratton Vanguard, 4-cycle, horizontal shaft, twin cylinder, OHV
Maximum Power
18 hp (13.4 kW) @ 4000 RPM
Maximum Torque
26.9 lb-ft (36.5 Nm) @ 2800 RPM
Starting System
Recoil start with 12 VDC electric start option
Type
Detachable 2-Stage Centrifugal Pump
Intake
3" Female NPT/4" VIC Combination
Discharge
2-1/2" Female NPT/3" VIC Combination
172 lbs (78 kg)
Carry Frame
Vertical
Primer
Guzzler Hand Primer (Standard)
Muffler
Dual Low Tone (Standard)
Fuel Tank
Integral / 1.75 US gals (6.6 L) (Standard)
FastWire
Engine Mount Control Panel (Standard)
Discharge Gauge
0-600 PSI, 2-1/2" dial (Standard)
