WATERAX offers a complete line of high performance portable centrifugal pumps.BB-4® High-Pressure Fire Pump
100034

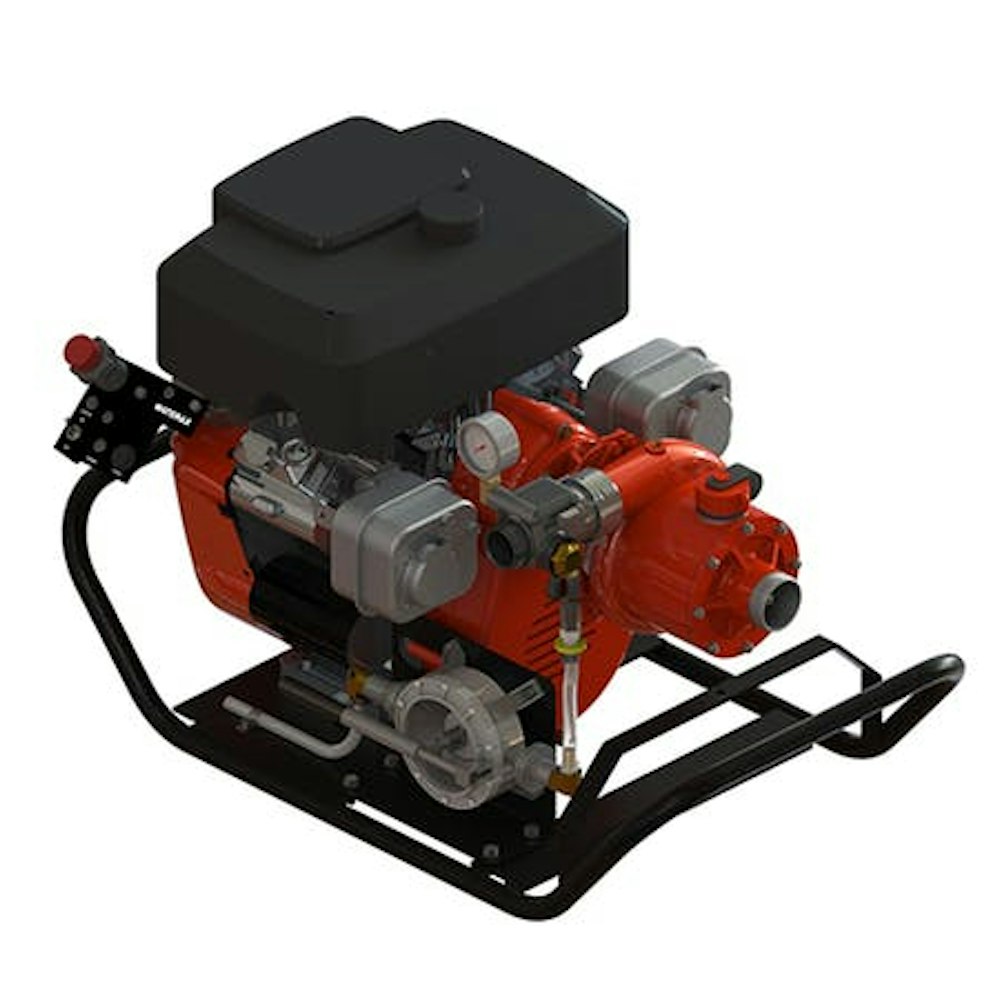

BB-4® High-Pressure Fire Pump
100034
The BB-4®-18PTC is powered by an 18 HP Briggs & Stratton engine with a vertical-drive unit, portable carry frame, fuel tank and engine-mount control panel.
Maximum pressure
440 PSI (30.3 BAR)
Maximum flow
104 US gals/min (394 L/min)
Maximum head
1016' (310 m)
100 GPM (379 lpm) @ 150 PSI (10.3 BAR)
83 GPM (303 lpm) @ 250 PSI (17.2 BAR)
50 GPM (189 lpm) @ 350 PSI (24.1 BAR)
Model and type
Briggs & Stratton Vanguard, 4-cycle, horizontal shaft, twin cylinder, OHV
Maximum Power
18 hp (13.4 kW) @ 4000 RPM
Maximum Torque
26.9 lb-ft (36.5 Nm) @ 2800 RPM
Starting System
Recoil start with 12 VDC electric start option
Type
Detachable 4-Stage Centrifugal Pump
Intake
2" Male NPSH
Discharge
1-1/2" Male NPSH
172 lbs (78 kg)
Carry Frame
Timing Belt and Pulley; Speed Increaser 1.88:1
Primer
Guzzler Hand Primer (Standard)
Muffler
Dual Low Tone (Standard)
Fuel Tank
Integral / 1.75 US gals (6.6 L) (Standard)
Controls
Engine Mount Control Panel (Standard)
Discharge Gauge
0-600 PSI, 2-1/2ʺ dial (Standard)
