BB-4® High-Pressure Fire Pump

100027

BB-4® High-Pressure Fire Pump

100027

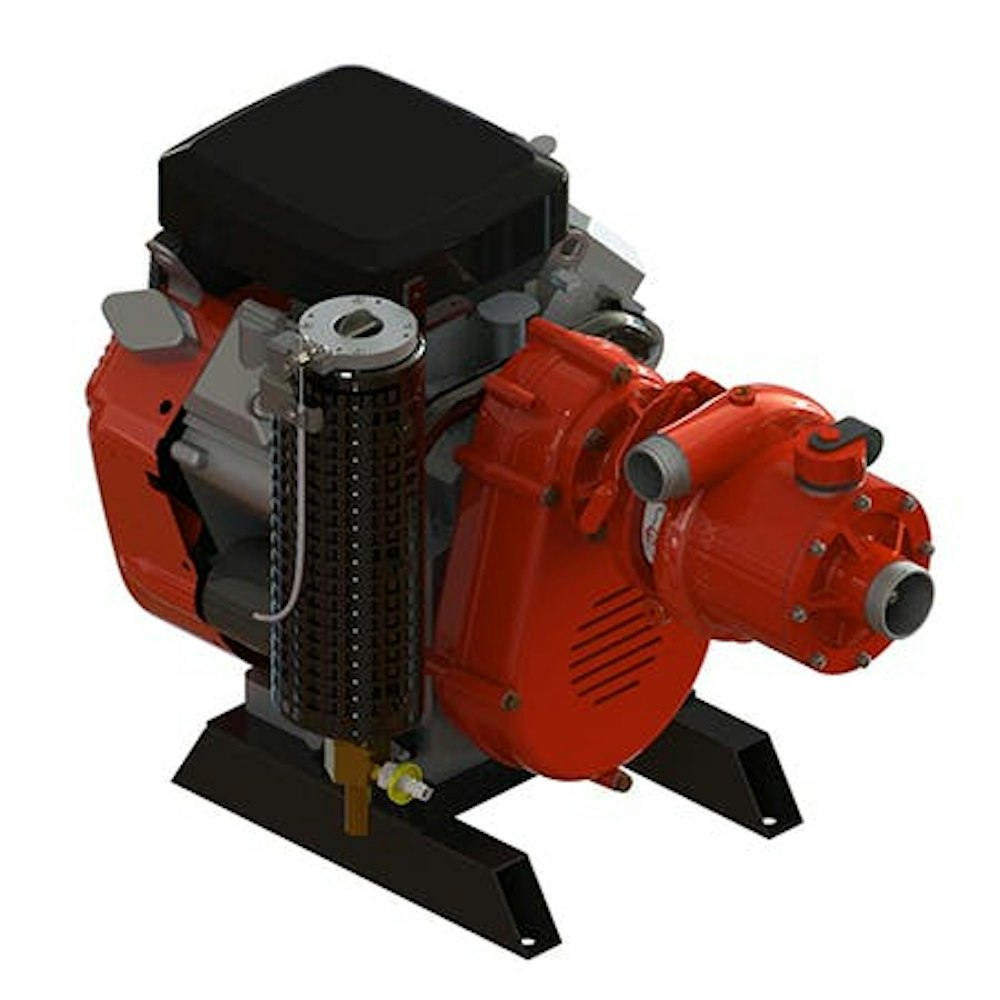

This BB-4®-23VX unit is configured for vehicle mounting with a 23 HP Briggs & Stratton engine, vertical-drive unit, base mount, FastWire 8-pin control cable, and remote exhaust primer with a control cable.

Maximum pressure
440 PSI (30.3 BAR)
Maximum flow
106 US gals/min (401 L/min)
Maximum head
1016' (310 m)
103 GPM (390 lpm) @ 150 PSI (10.3 BAR)
94 GPM (356 lpm) @ 250 PSI (17.2 BAR)
65 GPM (246 lpm) @ 350 PSI (24.1 BAR)
Model and type
Briggs & Stratton Vanguard , 4-cycle, horizontal shaft, twin cylinder, OHV
Maximum Power
23 hp (17.2 kW) @ 3600 RPM
Maximum Torque
32.75 lb-ft (44.4 Nm) @ 2600 RPM
Starting System
Recoil start with 12 VDC electric start option
Type
Detachable 4-Stage Centrifugal Pump
Intake
2" Male NPSH
Discharge
1-1/2" Male NPSH
162 lbs (73 kg)
Base Mount with Industrial Isolators
Timing Belt and Pulley; Speed Increaser 1.88:1
Primer
Remote Exhaust Primer w/Control Cable (Standard)
Muffler
Exhaust Primer Muffler (Standard)
FastWire
3' CTRL Cable with 8 pin connector (Standard)
Controls
Remote Mount Control Panel - XCP Series (Optional)
