WATERAX offers a complete line of high performance portable centrifugal pumps.MINI-MARK® Watson Edition
100147

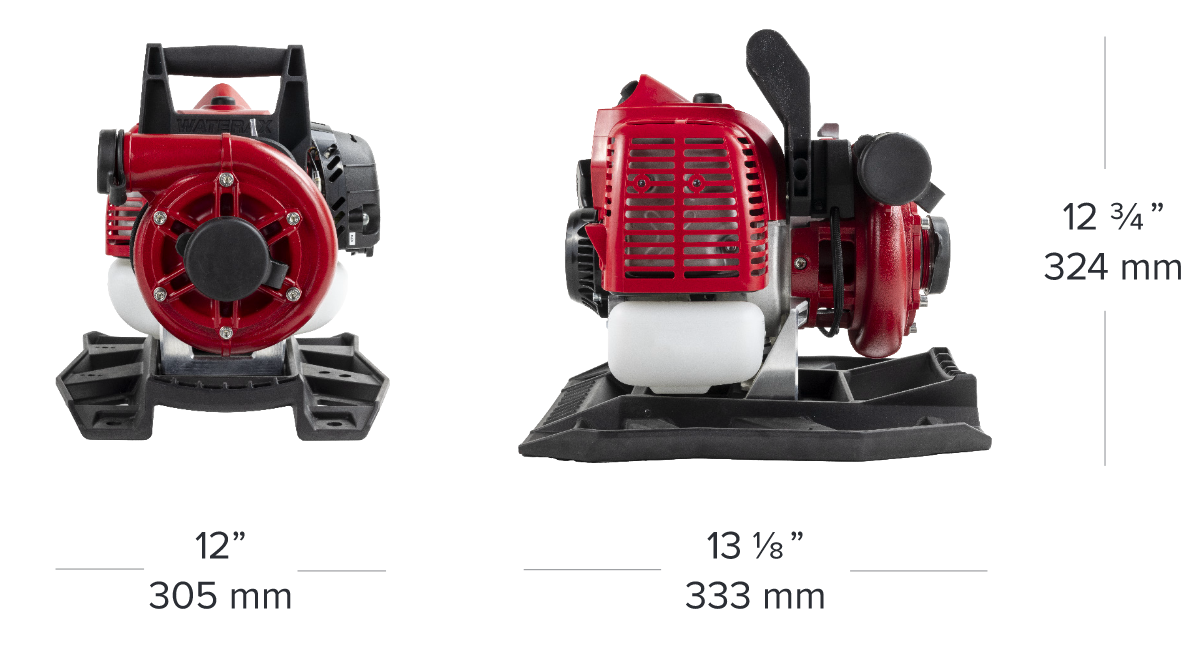

MINI-MARK® Watson Edition
100147
Maximum pressure
85 PSI (6 bar)
Maximum flow
102 US gals/min (386 L/min)
Maximum head
196’ (60 m)
66 GPM (250 lpm) @ 25 PSI (1.7)
50 GPM (189 lpm) @ 50 PSI (3.4)
31 GPM (117 lpm) @ 75 PSI (5.2)
Maximum Power
2.3 hp (1.72 kW) @ 7,000 rpm
Maximum Torque
2.1 lb-ft (2.84 Nm) @ 4,000 rpm
Starting System
Recoil starter
Ignition
Capacitive discharge ignition (CDI)
Air cleaner
Semi dry type
Carburetor
Diaphragm type with integrated purge bulb
Lubrication
Fuel mix ratio: 50:1 (gasoline to oil)
Fuel type
Oil: 2-cycle mixing oil with API-TC, JASO FD and ISO-L-EGD certification
Fuel tank capacity
0.26 US gal (1 L)
Fuel connector
Optional kit: Three-way valve, SAE 45° connection for external fuel tank
Fuel consumption
0.24 US gals/hr (0.91 L/hr)
Type
Single-stage, centrifugal pump
Intake
2” (51 mm) NPSH
Discharge
1-1/2” (38 mm) NPSH
Maximum allowable pressure
200 PSI (13.8 bar)
Maximum pressure
85 PSI (6 bar)
Maximum flow
102 GPM (386 lpm)
Volute and suction cover
Foam compatible, lightweight anodized aluminum alloy
Impeller
Composite corrosion resistant
Seal
Mechanical rotary seal
Pump shaft
Stainless steel
Controls
Push OFF button with electronic overspeed cutoff
Throttle
With detents to avoid throttle drift
18 lbs (8.2 kg)
Centrifugal clutch
Maximum pressure
85 PSI (6 bar)
Maximum flow
102 US gals/min (386 L/min)
Maximum head
196’ (60 m)
66 GPM (250 lpm) @ 25 PSI (1.7)
50 GPM (189 lpm) @ 50 PSI (3.4)
31 GPM (117 lpm) @ 75 PSI (5.2)
Maximum Power
2.3 hp (1.72 kW) @ 7,000 rpm
Maximum Torque
2.1 lb-ft (2.84 Nm) @ 4,000 rpm
Starting System
Recoil starter
Ignition
Capacitive discharge ignition (CDI)
Air cleaner
Semi dry type
Carburetor
Diaphragm type with integrated purge bulb
Lubrication
Fuel mix ratio: 50:1 (gasoline to oil)
Fuel type
Oil: 2-cycle mixing oil with API-TC, JASO FD and ISO-L-EGD certification
Fuel tank capacity
0.26 US gal (1 L)
Fuel connector
Optional kit: Three-way valve, SAE 45° connection for external fuel tank
Fuel consumption
0.24 US gals/hr (0.91 L/hr)
Type
Single-stage, centrifugal pump
Intake
2” (51 mm) NPSH
Discharge
1-1/2” (38 mm) NPSH
Maximum allowable pressure
200 PSI (13.8 bar)
Maximum pressure
85 PSI (6 bar)
Maximum flow
102 GPM (386 lpm)
Volute and suction cover
Foam compatible, lightweight anodized aluminum alloy
Impeller
Composite corrosion resistant
Seal
Mechanical rotary seal
Pump shaft
Stainless steel
Controls
Push OFF button with electronic overspeed cutoff
Throttle
With detents to avoid throttle drift
18 lbs (8.2 kg)
Centrifugal clutch
