WATERAX offers a complete line of high performance portable centrifugal pumps and hand pumps.

VERSAX® Multipurpose Pump

100113

VERSAX® Multipurpose Pump

100113

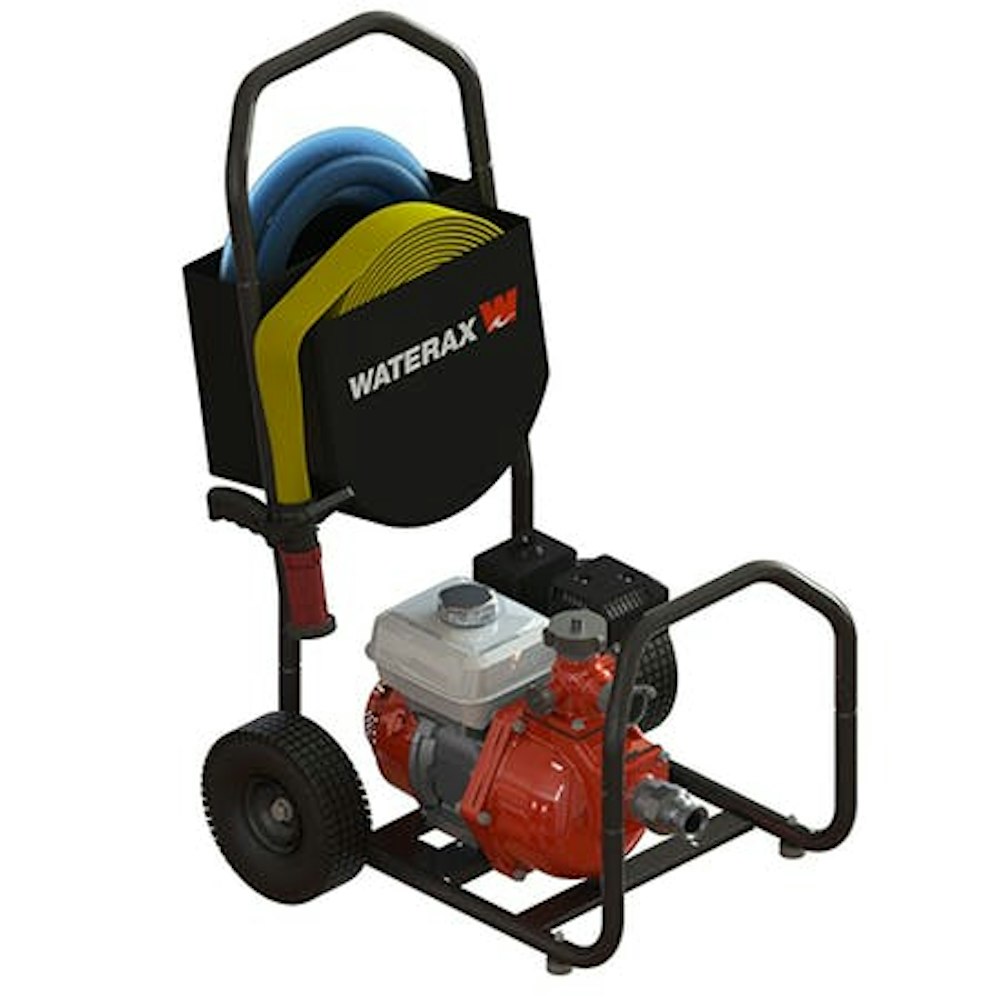

The VERSAX®-6C is powered by a 6 HP Honda engine in a portable configuration on a wheel cart system with suction and discharge hose storage.

Maximum pressure
120 PSI (8.3 BAR)
Maximum flow
105 US gals/min (397 L/min)
Maximum head
277' (84 m)
83 GPM (314 lpm) @ 50 PSI (3.4 BAR)
63 GPM (238 lpm) @ 75 PSI (5.2 BAR)
38 GPM (144 lpm) @ 100 PSI (6.9 BAR)
Model and type
Honda GX200 Series, 4-stroke horizontal shaft, OHV, air cooled gasoline
Maximum Power
5.5 hp (4.1 kW) @ 3600 RPM
Maximum Torque
9.1 lb-ft (12.4 Nm) @ 2500 RPM
Starting System
Manual; Recoil
Type
Self-Priming 2-Stage Centrifugal Pump
Intake
2" Male NPT
Discharge
1-1/2", 1", 1" Male NPT, 2" Male BSP
116 lbs (52.5 kg)
Wheel cart system with hoses storage
Discharge Caps
2x Cap 1” NPSH & Cap 1-1/2” NPSH (Standard)
Hose Kit
Pistol Grip & Nozzle 50-100GPM 1.5X100' Forestry Hose, 1.5X16 Suction, Footvalve, Adaptors (Standard)
